Lifting Magnet TML 500

Lifting Magnet TML 500

500 kg maximum load capacity with a tare weight of just 7.3 kg - the figures speak for themselves. But our TML 500 also has many other impressive advantages: As a member of the TML family (Thin Material Lifting), it develops impressive adhesive forces even on thin-walled materials thanks to patented magnet technology.

From a material thickness of 5 mm, the permanent magnet can lift loads weighing up to 300 kg; from 10 mm thick steel, the load capacity is around 490 kg.

Flexibility is ensured by the 360° rotating load swivel, which creates a secure connection to your lifting or transport device using a hook with safety flap or a load sling.

Move your metal sheets, metal plates or beams with a crane, overhead crane or wire rope hoist - you can rely on the TML 500!

We think along with you. That's why our magnets are precisely tailored to your daily processes - one example is the ergonomically shaped lever, which is aligned lengthways on the slimline housing.

The reason: this design allows the magnet to be activated even inside a T-beam.

The TML 500 will stay with you for a long time because the TiN coating on the magnetic surface is extremely robust and resistant to damage.

Click here for the technical data!

ALFRA GmbH in the MEDIA CENTER

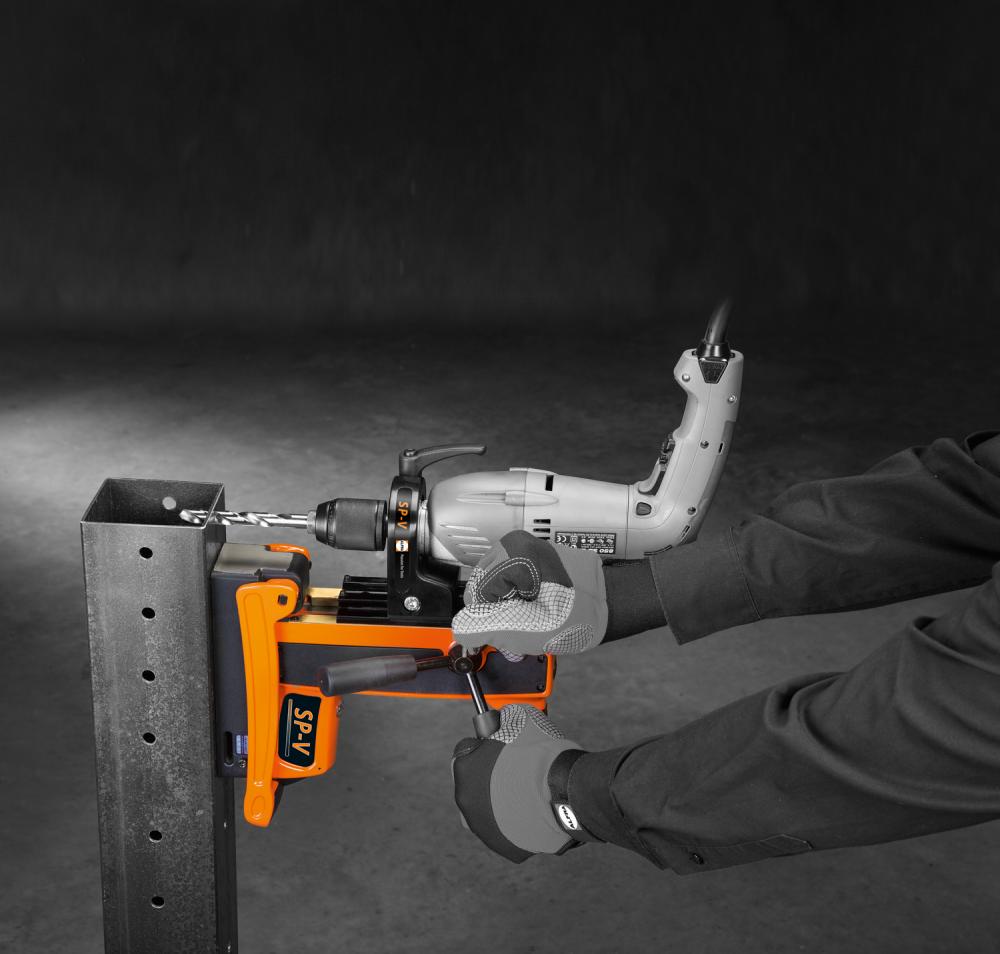

Universal Magnetic Drill Stand SP-V
Universal Magnetic Drill Stand SP-V
One for all! Our universal drill rig SP-V is a flexible partner for a large variety of dilling machines. The principle: maximum holding power even on thin-walled materials. The permanent magnet in the drill stand is based on our patented technology TML (Thin Material Lifting) and is fixing your core drilling machine on metals from a thickness of only 2mm. The variable holders and the Euro collar are offering a wide range of combination possibilities with different drill neck diameters. Another advantage: With only 6.8 kg the SP-V is a genuine lightweight and therefore a valuable and handy assistant on construction sites, in shipyards or in metal processing companies.
Photographer: Alfra GmbH

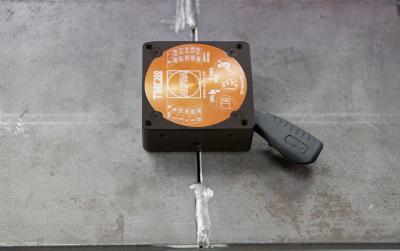

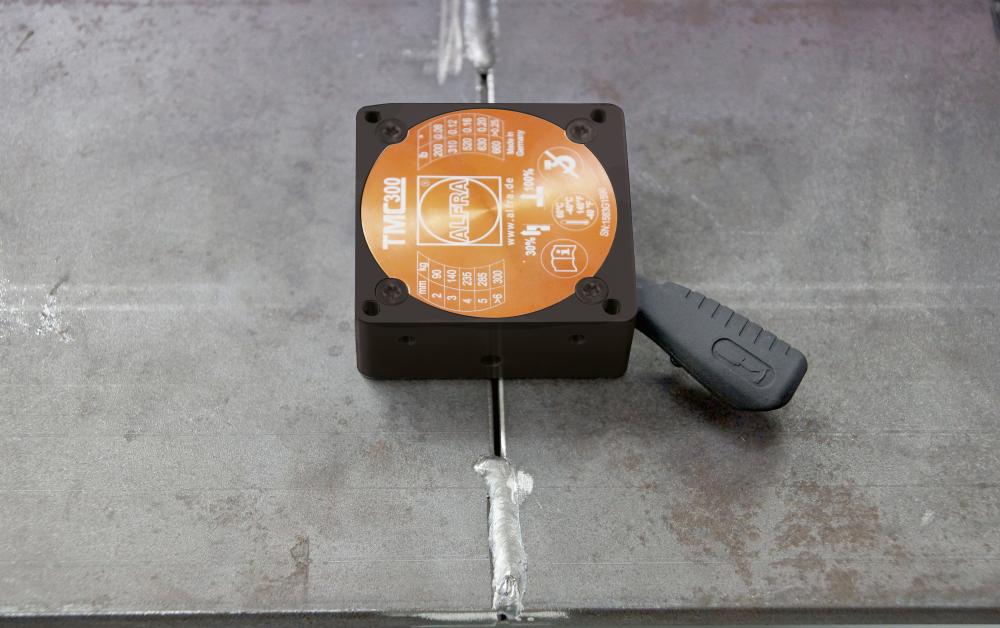

Positioning Magnet TMC 300
Positioning Magnet TMC 300
Only 1 kg dead weight and a tear-off force of 300 kg from 6 mm material thickness - these figures are standing for countless application possibilities for our holding magnet TMC 300. The reason: Connection threads in M5 and M6 on the top of the housing and on both sides of the housing are offering you the option to customize the TMC 300 according to your requirements. Benefit from the advantages of our patented technology for 'your' project. Your advantage: its outstanding performance characteristics on thin-walled materials – as well as the strong adhesive forces for a secure hold, especially in vertical applications. The TMC 300 is an ideal magnetic base, because you can modify it with designs for cutting, angled side plates or handles. It is also fixing plates and sheets for clean welding seams. When it comes to welding, another advantage of the TMC 300 is taking effect: Our Alfra magnets are designed in a way that the electric arc, which is occuring during welding is only deflected when a distance of 15 mm to the device is undercut. Welding seams very close to the magnet are therefore possiblebr.
Photographer: Alfra GmbH

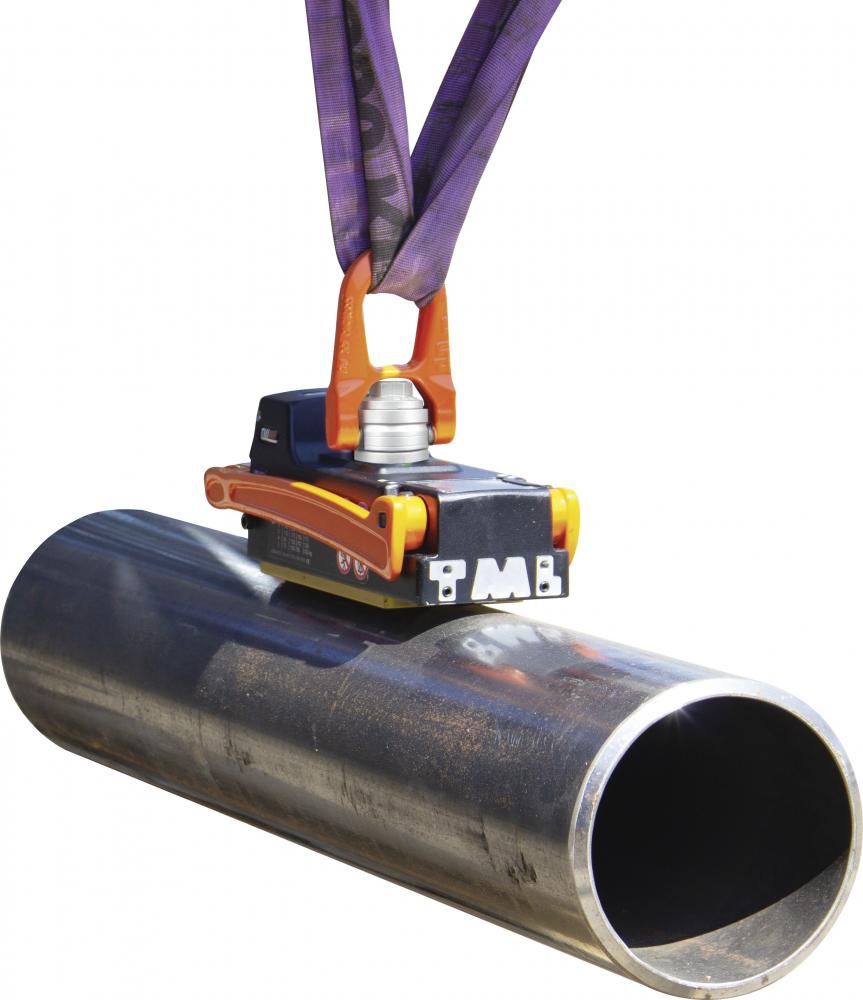

Lifting Magnet TML 400 R
Lifting Magnet TML 400 R
Mastering heavy tasks with ease - that is the core competence of our TML 400 R. Weighing just 8.2 kg, the lifting magnet was developed to safely move pipes or curved parts weighing up to 400 kg from A to B. The prism for round steel and pipes with a diameter between 50 mm and 400 mm in combination with the patented TML technology (Thin Material Lifting) ensures ideal holding force. Thanks to the optimised force field structure, the TML 400 R achieves considerable magnetic holding forces even with low mass input. The swivelling and 360° rotatable load swivel gives you flexibility in use: Activate the TML 400 R using the user-friendly one-hand operation, connect the load swivel to your crane or hoist using a hook with safety flap or load loop - this allows you to move pipes safely and conveniently.
Photographer: Alfra GmbH

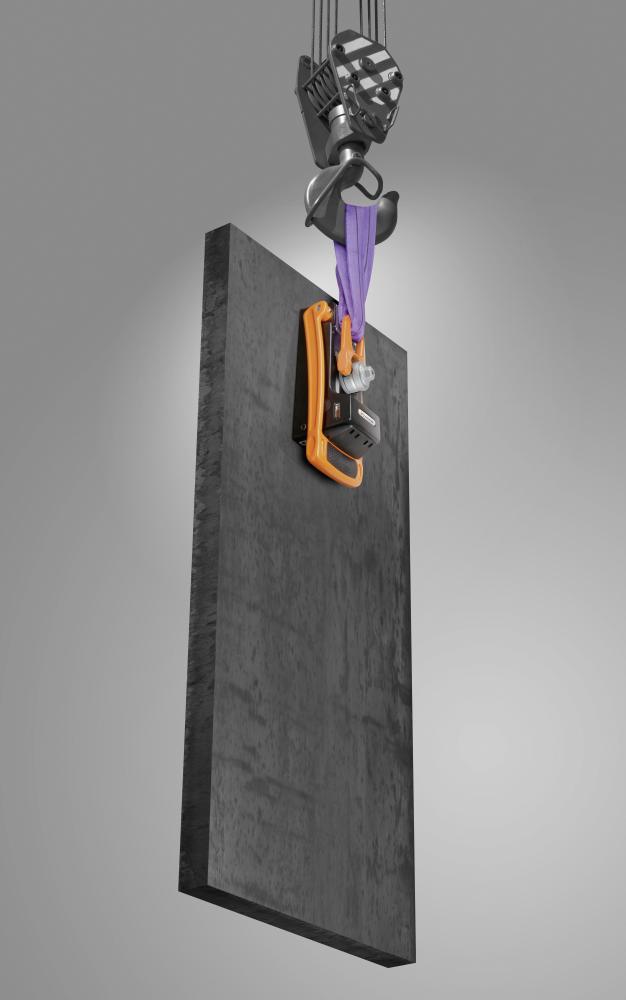

Lifting Magnet TML 500
Lifting Magnet TML 500
500 kg maximum load capacity with a tare weight of just 7.3 kg - the figures speak for themselves. But our TML 500 also has many other impressive advantages: As a member of the TML family (Thin Material Lifting), it develops impressive adhesive forces even on thin-walled materials thanks to patented magnet technology. From a material thickness of 5 mm, the permanent magnet can lift loads weighing up to 300 kg; from 10 mm thick steel, the load capacity is around 490 kg. Flexibility is ensured by the 360° rotating load swivel, which creates a secure connection to your lifting or transport device using a hook with safety flap or a load sling. Move your metal sheets, metal plates or beams with a crane, overhead crane or wire rope hoist - you can rely on the TML 500!
Photographer: Alfra GmbH

All media from ALFRA GmbH

To the MEDIA CENTER

To the MEDIA CENTER

Product groups

Product range

Lifting Magnet TML 400 R

Lifting Magnet TML 400 R
  • Very good performance on thin-walled materials (can be used from 2mm)
  • Only 8.2 kg dead weight
  • Max. Load capacity : 400 kg at 3:1 safety factor
  • Tear-off force at 1200 kg from 15 mm steel (S 235)
  • Swivelling and 360° rotatable load swivel
  • With prism for ideal grip on pipes and other curved surfaces
  • Lifts pipes from 50 mm to 400 mm diameter
  • Click here for the application video!
Product range

Magnetic Clamp TMC 300 R

Magnetic Clamp TMC 300 R
  • Outstanding performance properties on thin-walled materials (can already be used from 1 mm)
  • Valuable aid for fixing pipes and curved surfaces during the welding process
  • Patented technology allows welding up to approx. 15 mm to the outside of the magnet
  • With prism for pipes and curved surfaces with diameters from 25 mm to 200 mm
  • Only 1.1 kg own weight
  • Tear-off force > 300 kg from 6 mm steel (S 235)
  • Click here for the technical data!
Product range

ALFRA TML 1000

ALFRA TML 1000
  • The lightest lifting magnet in the 1t range, with a net weight of only 18 kg.
  • Max. Load capacity: 1000 kg (with 3:1 safety factor)
  • Breakaway force: 3600 kg
  • Swivelling and 360° rotatable load swivel. Also available in a version with fixed load swivel for traverse use
  • Outstanding performance on thin-walled material
  • Large magnetic holding surface of 385 x 90 mm
  •  Click here for the video!
Product range

ALFRA - Adjustable Welding Angle TMA 600

ALFRA - Adjustable Welding Angle TMA 600
  • A must have for everyone who needs to weld heavy workpieces together at di erent angles
  • Welding seams are possible close to the magnet because the arc created during welding is only deflected when a distance of less than 15 mm to the tool is reached
  • Including two TMC 300 Magnetic Clamps providing a max. holding force of up to 2 x 300 kg(perpendicular to the magnetic contact area)
  • Highly adjustable angle side plates with a range from 0° to 90° for holding and welding workpieces
  • Lightweight, easy and trouble-free handling
  • Click here for the technical data and the application video
Product range

ALFRA - Universal Magnetic Drill Stand SP-V

ALFRA - Universal Magnetic Drill Stand SP-V

https://oxomi.com/p/3000281/catalog/10402919?page=100

Variable clamps allow for the use of di  erent drilling machines. This drill stand features a so-called
Euro Collet Clamp and a permanent magnet allowing for the wireless use of battery-powered drilling machines and providing a nearly infi nite operation range–from just 2 mm material thickness.

Company profile

Tool competence with passion
Alfra manufactures and sells electrical devices and tools for punching and drilling materials from 0.8 to over 100 millimetres thickness. Our portfolio also includes solutions for busbar processing as well as magnet and lifting technology. Since 2022, Alfra has been part of Rittal Automation Systems (RAS) under the umbrella of the Friedhelm Loh Group. This brings over 100 years of industry experience in toolmaking to the range of services offered by RAS.


Are you looking for a competent consultant for your applications in metal construction, switch cabinet construction or for lifting and adjusting loads? Then let us convince you of our developments.

A worldwide dealer network supplies our products to more than 100 countries.
